Product Description

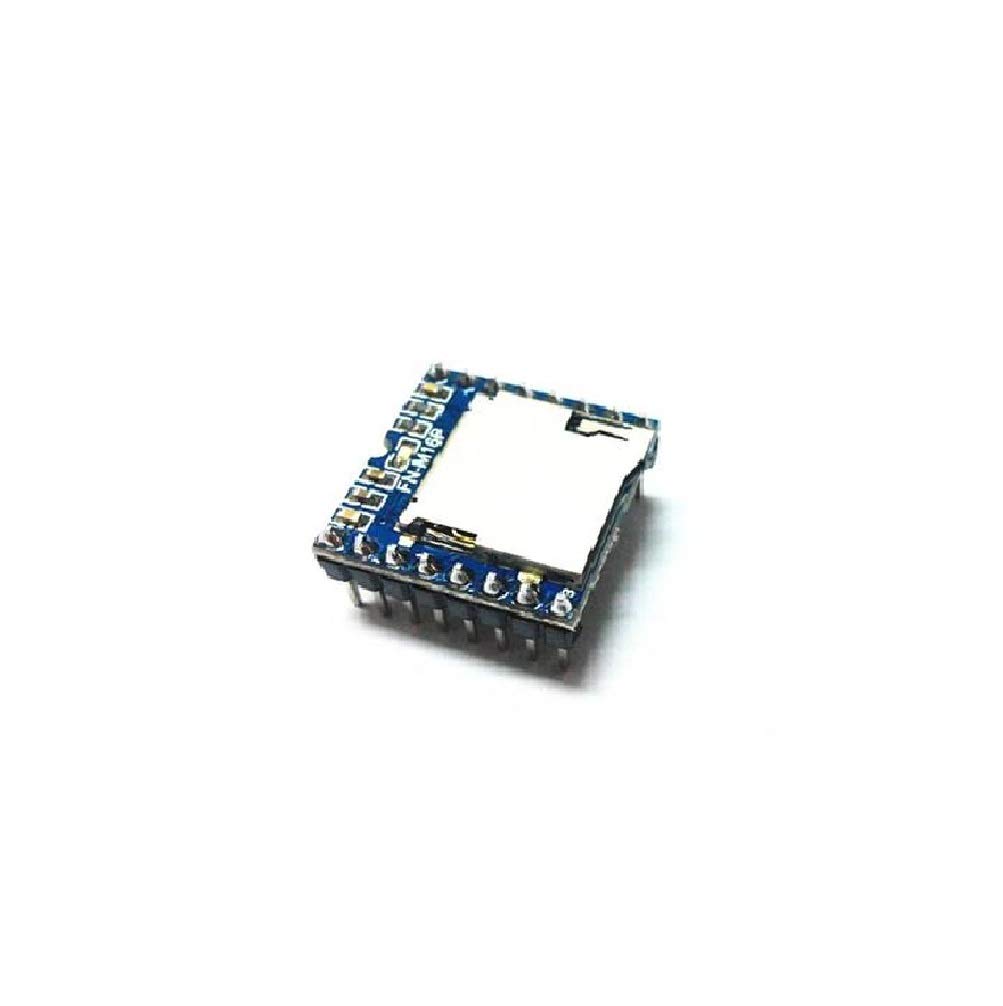

The FN-M16P is a compact and highly integrated MP3 module designed for easy audio playback control via serial communication or AD key interface. With built-in MP3 and WAV decoding, microSD and USB flash drive support, and an onboard amplifier, it is ideal for voice prompts, sound effects, audio playback in embedded systems, and interactive electronics.
This module simplifies audio functionality integration by handling file systems (FAT16 and FAT32), decoding, and playback control internally. It enables users to focus on application development without managing complex audio processing.
Specification
Audio Format: MP3, WAVControl Modes: UART Serial (RS232), AD KeyOutput: 24-bit DAC audio, built-in 3W amplifierSNR: 85 dBDynamic Range: 90 dBFile System Support: FAT16, FAT32Storage Support: microSD (up to 32GB), USB Flash Drive (up to 32GB)Playback Structure: 99 folders max, 255 files per folderVolume Control: 30 levelsEQ Settings: 6 adjustable levels, Speaker Support: 3W, 8 Ohm
Feature
Supports MP3 and WAV audio file formatsCompatible with FAT16 and FAT32 file systems24-bit DAC audio output with dynamic range of 90dB and SNR of 85dBSupports both UART (RS232 serial control) and AD key controlMaximum storage support: 32GB microSD card and 32GB USB flash driveFolder-based file organization: supports up to 99 folders, each with 255 files Application
Voice prompt systemsEmbedded electronics with audio playbackArduino and microcontroller projectsPublic address systemsToys, models, and interactive installations
Fn-m16p module is a serial mp3 module that is with a perfect integrated mp3 and wmv decoder chip
Supports fat16 and fat32 file system; 24-Bit dac output and supports dynamic range 90db and snr 85db; Supports ad key control mode and uart rs232 serial control mode
Supports maximum 32gb micro sd card and 32gb usb flash drive
Audio files are sorted by folders; supports up to 99 folders and each folder can be assigned to 255 sound files
