Interfaces: USB 2.0 type A Male for input; 6 pin Female Socket Header for output;
USB to TTL Converter Chip: FTDI FT232RNL
Breakout board pinout: TXD (orange), RXD (yellow), CTS (brown), RTS (green), VCC (red), GND (black), easy to wire;
The I/O pins of serial to USB adapter operate at 3V3 logic level (VCC power line output 5V , data signal output 3.3V);
USB 2.0 UART interface supports Windows 10, 11, 8, 7, 2008, XP , Vista, CE, Mac OS, Linux , Ubuntu 11.10, kernel 3.0.0-19;
Data transfer rates up to 3M baud rate;
Internal EEPROM with users writable area;
3-Foot FT232RL FTDI USB to serial adapter for TTL 3.3V logic level data communication:
Low-profile USB serial adapter is built with FTDI FT232 chip, VCP driver allow for communication as a virtual COM port and D2XX ‘direct’ drivers provide DLL programming interface.
If the driver is not auto installed on your laptop, it can be easily downloaded on the FTDI website, or you may contact us on the order page).
Clear plastic shell and LED Indicators for Easy Monitoring Rx and Tx lines: No more guesswork! Watch the LED lights flash to confirm connection status and data flow is transferring properly.
Serial to USB adapter consoles into your terminal devices for debugging, boot-loading, downloading, programming, etc. No need for messy jumpers, just plug it in and it shows up in Putty.
Reliable communication between your computer and various embedded devices, for IoT project, developing custom electronics, interfacing legacy peripherals, microcontroller board UART or I/O, FPGA / PLD to USB, serial terminal program and development environment: microprocessor, MCU, PCM, board, pro mini, Raspberry Pi, esp32 development ESP8266, unbrick router, serial monitor, power amplifier, Ham radio, light cube, Bluetooth module, Serial com cable to change firmware, upgrading , etc.
What’s Included
1 x USB to TTL Adapter
1 x Manual

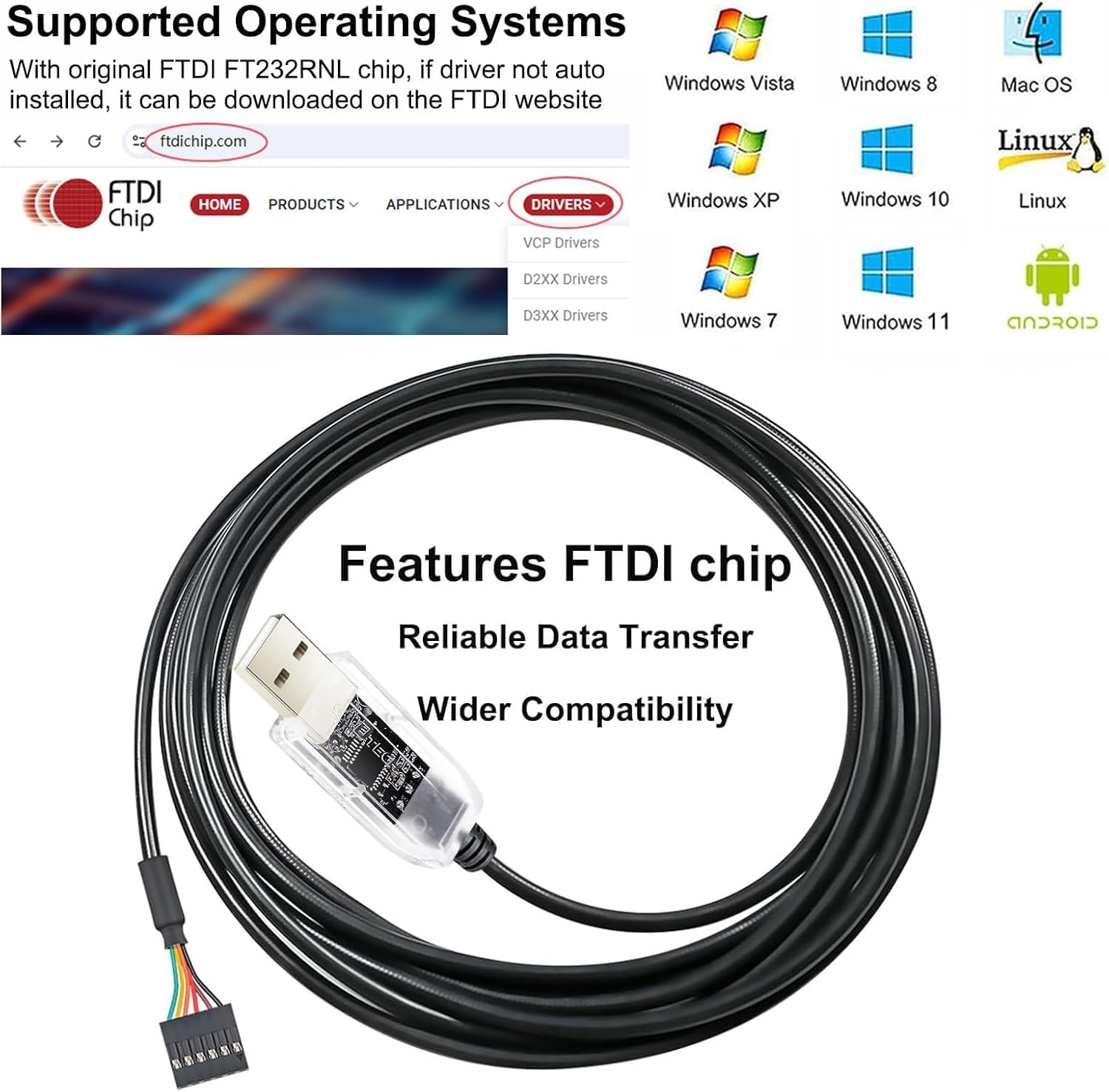

With genuine FTDI chip USB to TTL serial adapter 3ft features FT232RNL chip and flashing LED indicators of TX and RX for easy monitoring on data flow of 3.3V logic level UART signal interface, provides reliable communication and efficient data transfer
3.3V TTL FTDI USB to serial adapter terminated with a 0.1″ pitch, 6 pin connector female socket header provide serial access to TxD, RxD, RTS, CTS, VCC and GND between your computer and embedded systems (VCC power output 5V, data signal output 3.3 volt)
3 feet short USB serial adapter TTL level compatible with Windows 11, 10, 8, 7 (32/64-bit), 2008, XP, Mac OS, Linux (6 way plug adaptor is built with original FTDI FT232RNL IC module, if driver not auto installed, it can be downloaded on the FTDI website)
UART to USB computer cord supports EEPROM, vendor ID re-write, repair a bricked router, update transmitter, serial monitor, GPS, calculator, set top box, program ESP8266 module, mini computer, flash firmware on hard drive and more 3.3 v serial devices
A handy laptop debug tool serial to USB adapter TTL-232R-3V3 for IoT project programmer, hardware engineer and DIY user to interface USB port to serial port, dsd debugging USB UART signals, developing industrial electronics
